Here's how Jaguar turned the F-Type into a rally car

Jaguar is not known for its rallying heritage. Mainly, we thought, because it doesn’t really have any.

Turns out this is not the case. Back in 1950 a man called Ian Appleyard and his wife Pat - daughter of company-founder Sir William Lyons - entered an XK120 in the Alpine Rally, then one of the world’s most prestigious motor races, and the event for which Alpine (the brand) was named. They finished without incurring a single penalty point, so naturally they entered twice more and did the same again. Meanwhile, in 1951 they won the 2,100-mile long Tulip Rally, and in 1953 were crowned the first official winners of Britain’s RAC Rally. All in the same Jaguar XK120, which by now we suspect was starting to look a bit second-hand.

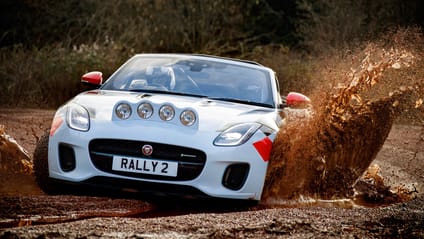

And it’s that XK120 that inspired the creation of this thing - a Jaguar F-Type rally car not intended to compete (getting it homologated would cost money JLR simply doesn’t have at the moment) but nonetheless effectively built to proper FIA specs. We’ve driven it, too. So, click through the gallery for a run-down of just how you go about turning a sports car into proper rally car, plus a quick look at what it actually feels like to drive.

The obvious starting point, isn’t it? In turning the F-Type into a rally car, Jaguar removed the standard springs and dampers, then threw them in the bin. In their stead, the company fitted adjustable Eibach springs some 40 per cent softer than a standard F-Type’s.

Then for the dampers, Jag obtained and fitted bespoke, hand-built items from a company called EXE-TC, which has a fistful of World Rally Championships to its name, and also supplies bits for the Singer DLS. The F-Type’s dampers have remote-reservoirs and are manually adjustable three ways.

In all, the F-Type rally car rides some 40mm higher than a normal F-Type. Doesn’t sound like much, but it's noticeable...

...especially when you’re riding on tiny 16in wheels, rather than the usual 19 or 20-inchers. The special Braid competition-spec wheels are built for gravel, and shod with knobbly yet skinny 255/55 Maxsport tyres. They mask brakes designed specially for use on gravel, with 295mm discs (40mm down on the road car) and four-piston calipers.

You’ll have noticed this F-Type is of the convertible variety, so obviously the biggest slab of weight you can get rid of is the roof mechanism. And that’s exactly what Jaguar’s done. This is a truly open rally car, which means if the going gets especially boggy you WILL get a face-full of mud, and when it rains you’ll be getting very wet indeed. Still, saves a bundle.

You also get lightweight racing seats with six-point harnesses and carbon-fibre door cards borrowed from the F-Type GT4 race car.

Safety first, kids. The FIA-approved cage is heavy, but entirely necessary a) to keep your head and neck from bearing the brunt of a rollover and b) so the F-Type complies with FIA safety regulations. The carbon door cards we mentioned earlier are mainly there to allow space for the cage, rather than give any meaningful weight savings.

Jag hasn’t told us how much the F-Type rally car weighs, but we’re guessing it’s still quite a lot. After all, it still has all the air-conditioning/infotainment gubbins of the regular car - they’re so hard-wired in, for this one-off project (though there are actually two) it was easier to leave them in place. If Jaguar was serious about taking this thing racing, you’d see a properly stripped-out interior. As it stands, the standard F-Type dashboard, centre console and instrument binnacle have survived the transformation almost entirely intact.

While we’re on safety, there’s also an electrically-actuated fire extinguisher, should things get a bit hotter than intended. And of course the six-point harnesses.

Modern road cars have an astonishing number of electrical safety systems, from basic traction control and anti-lock brakes, to autonomous emergency braking and other crash avoidance tech. For the F-Type, all these systems have been deactivated. Good.

The F-Type rally car isn’t based on a big, V8 SVR. Which is a shame, because wouldn’t that be just hilarious? Not a V6 either, but the 296bhp 2.0-litre four-cylinder that was added to the range in 2017. This is because, says Jaguar’s engineers, a rally car isn’t about outright speed, but manoeuvrability and agility. And in their view, it’s the rear-wheel drive 2.0-litre that, at low speeds, is the most poised.

The powertrain is mostly unmodified over a standard 2.0-litre F-Type. The only real difference is that you get the mechanical LSD from the V6 F-Type, giving more traction and eight per cent shorter gearing for the eight-speed auto. Obviously if Jag was to go racing, there would be substantial changes here - a proper sequential box, for one.

It’s louder, too, because the exhaust’s centre section has been deleted. And instead of plastic undertrays, underneath there’s a load of 5mm thick aluminium plating to protect the oily bits from damage.

Light. Pod. Need we say any more?

Or, better yet, a hydraulic handbrake. Normally the F-Type has an electronic handbrake. Pull that at speed and the car will slow to a stop, but the rears won’t lock. Not even slightly. Which in a rally car is a problem, to say the least.

So Jag deleted it, and added a big lever to the left-hand side of the steering wheel. Pull it quite hard (it requires more effort than you think) and the rears will lock, arcing you gracefully around tight hairpins. Or pirouetting you into a hedge. Works both ways.

Oh it’s a laugh, alright. The course Jag had set up for us was a tiny, narrow affair round the back of its Fen End engineering centre. Not a proper rally stage by any means, and not fast, but varied and technical enough to get a sense of the F-Type’s ways.

The rollcage means it’s like climbing into a coupe, because you have to duck your helmeted head under metal tubing thick and hard enough to support the weight of the entire car. But once you’re buckled into the race seat, it’s all very F-Type. F-Type steering wheel, dashboard, centre console, gear-lever… There are clues you’re in something a bit different, though. The hydraulic handbrake lever, for example, and the small array of buttons just behind the gear lever, which let you turn on the light pod, arm the fire extinguishers and so-on. Then there’s the little screen between the dials, which is constantly cycling through error codes brought on by all the modifications. The car’s computer is plainly having a meltdown of fairly epic proportions.

Yet it starts on the button, and slots into drive in the normal way. Like a normal F-Type.

The first bit of the course is tarmac, albeit slick with mud. There isn’t much grip, even with those knobbly tyres, and the F-Type slews away from the start line. The first thing you notice is the noise, which is loud and purposeful if not especially sweet. Meanwhile the pops and bangs on the overrun are a whole new level of outrageous.

Then comes the ride, which is remarkable. It’s soft yet composed, with the kind of compliance and control you only find in cars with thousands of pounds worth of competition-grade suspension. It reminds me a bit of our old off-road spec Ariel Nomad in the way it handles divots and potholes, though it doesn’t have that kind of suspension travel. Whatever you throw at it, the springs and dampers lap it up. In an F-Type this is most incongruous.

There’s roll when you turn in, and dive when you brake - it makes the car feel quite old school. The way it slides is as benign as I’ve ever experienced, too. It’s a bit like driving on ice - where the throttle is used as much for steering as it is for accelerating, and it feels like you have all the time in the world to react. Where you exit every corner with a load of opposite lock, lots of noise and a massive smile on your face. Sideways feels like the most natural way to drive it, in classic RWD rally car fashion, exploiting the F-Type’s inherent balance and poise along with that mechanical LSD.

This is masses of fun going relatively slowly for a rank amateur like me. But in the hands of someone who knows what they’re doing, and on a proper rally stage, that friendliness and the F-Type’s inherent balance must translate into serious speed.

Jag just built the F-Type rally car for a bit of fun. And it certainly is that. Fingers crossed it doesn't spend its life gathering dust in a warehouse, but out in a forest somewhere. Getting dirty.
